HOTF-02 Medical 304 stainless steel Multi-purpose Orthopedics Traction Frame

Customization:	Available
Type:	Operating Table
Certification:	CE, ISO13485

📋 Basic Information

Model NO.

HOTF-02

Group

Adult

Transport Package

Wooden Case

Origin

Jiangsu, China

Production Capacity

500 Piece/Month

🚀 Product Description

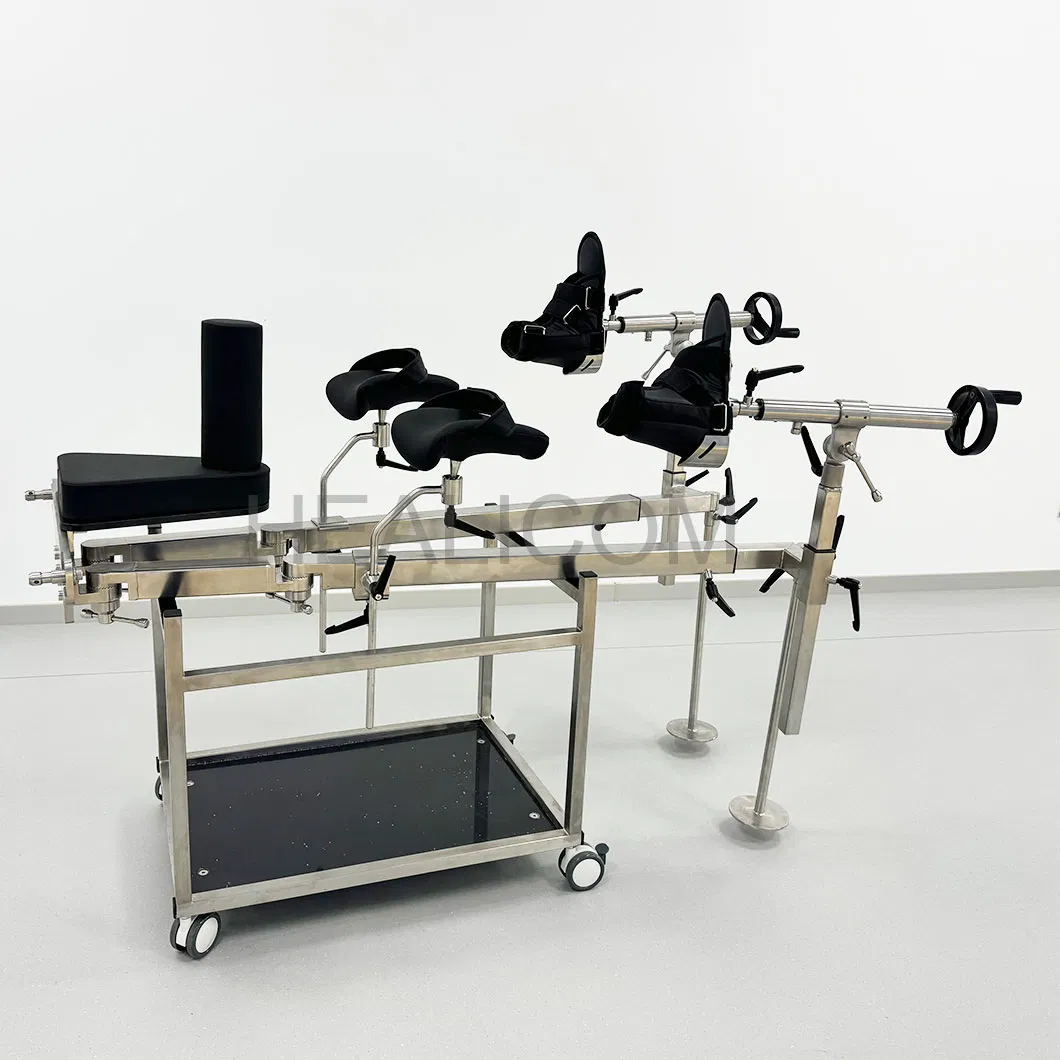

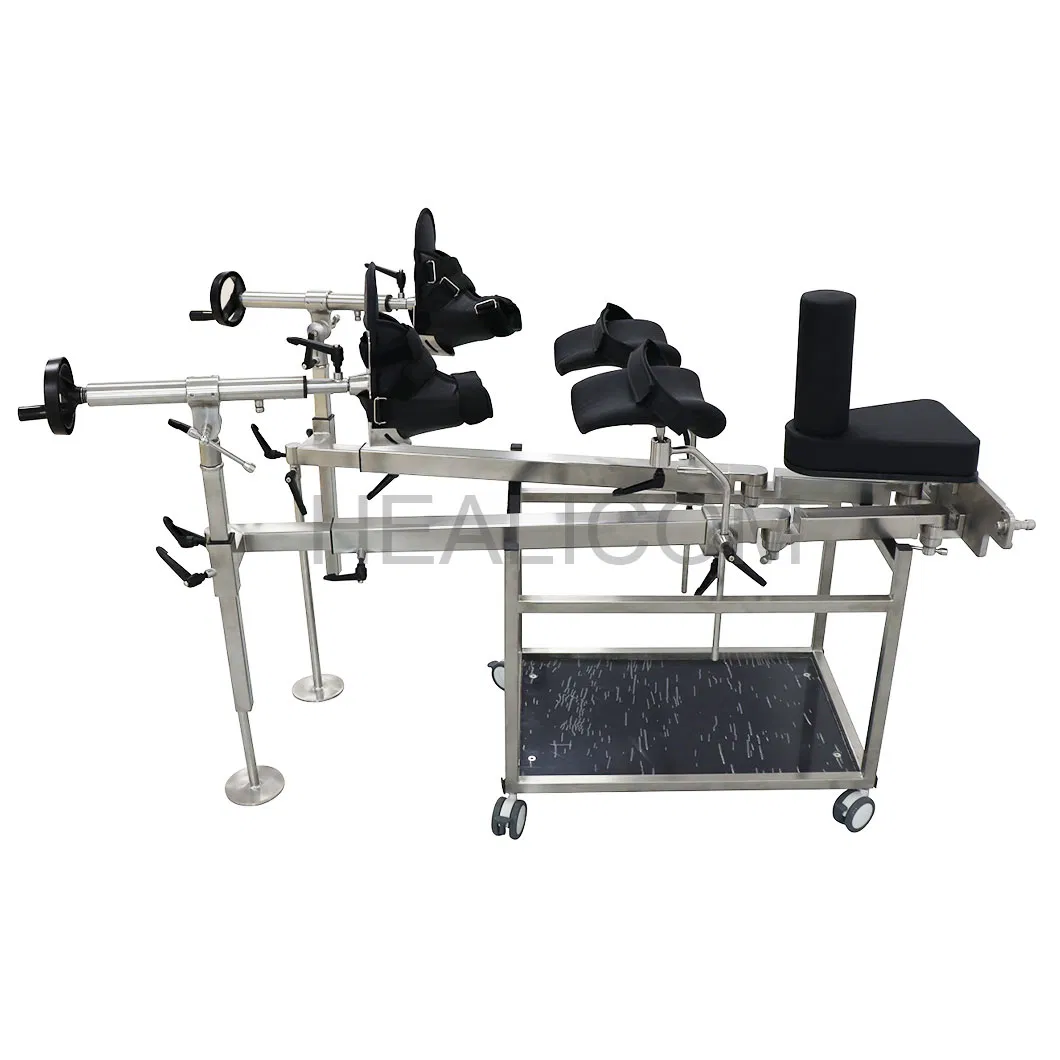

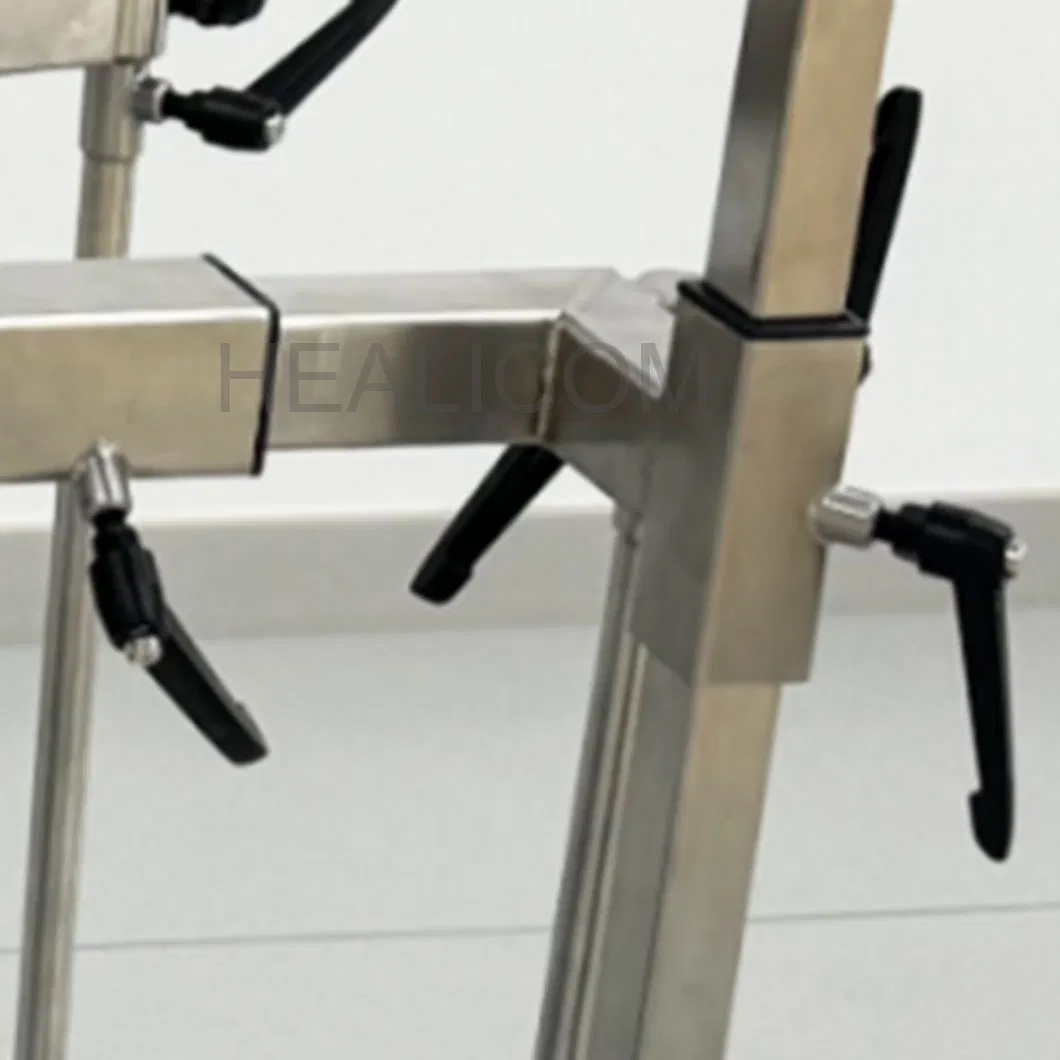

HOTF-02 Multi-purpose Orthopedics Traction Frame

💎

Premium Construction: This traction frame is constructed entirely of 304 stainless steel. Key angle adjustment areas utilize face-tooth fastening technology, and key components are precision cast, one-piece molding.

🔄

Adjustable Design: The traction frame features a dual-joint design and a retractable extension rod, allowing for multiple angle adjustments and ensuring a wide field of view during surgery.

Technical Parameters
Overall lifting height	Lift with the operating table
Extension rod (short) extension	≥180°
Extension rod (short) length	310mm
Extension rod (long) extension	≥300°
Extension rod (long) length	800mm
Tractor horizontal displacement	≥650mm
Tractor vertical displacement	≥400mm
Tractor horizontal rotation	360°
Tractor vertical rotation	180°
Traction shoe rotation	360°
Traction shoe pulling force	400N
Traction travel	≥200mm
Leg support travel	≥650mm
Perineal support post length	230mm
Perineal support post diameter	100mm
Traction frame quick adjustment travel	1300mm - 1950mm
Maximum load capacity	200kg

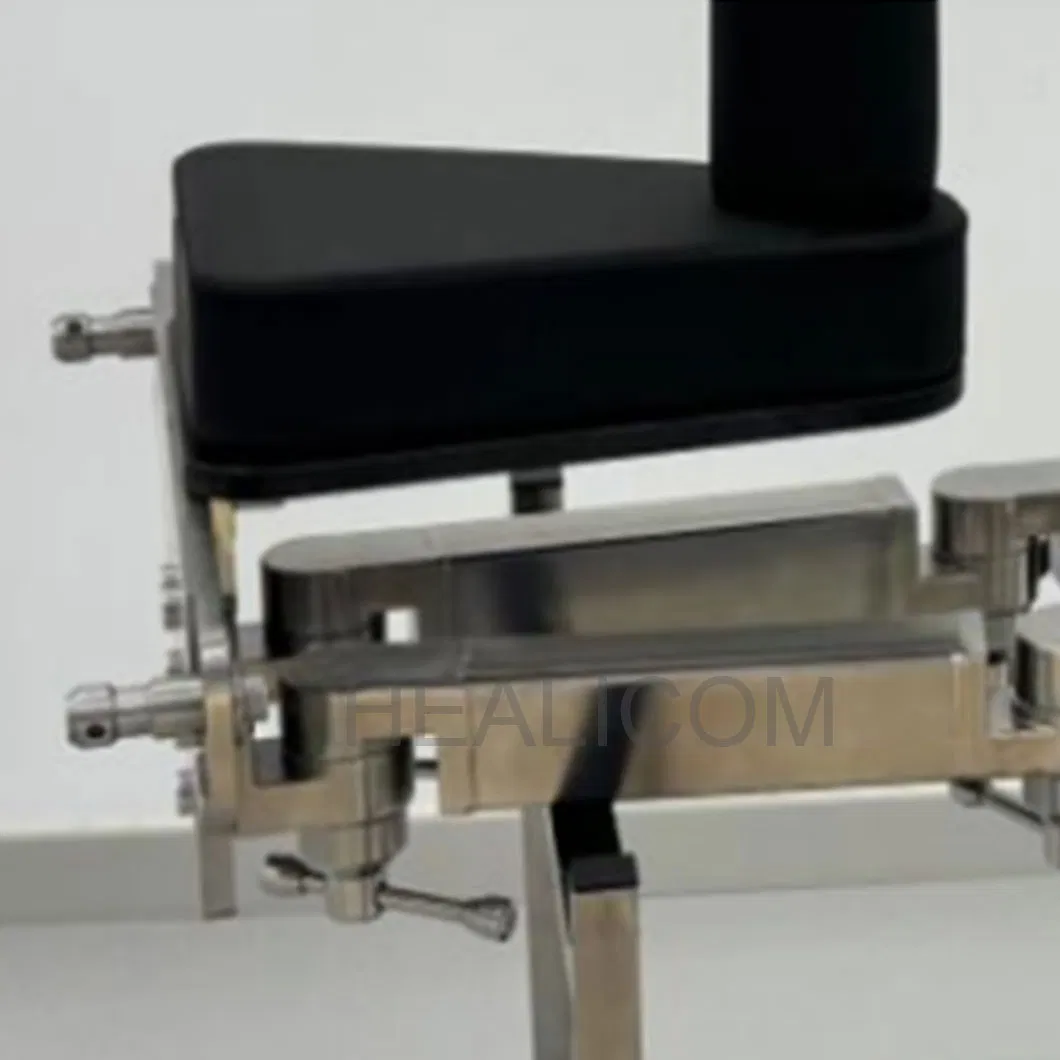

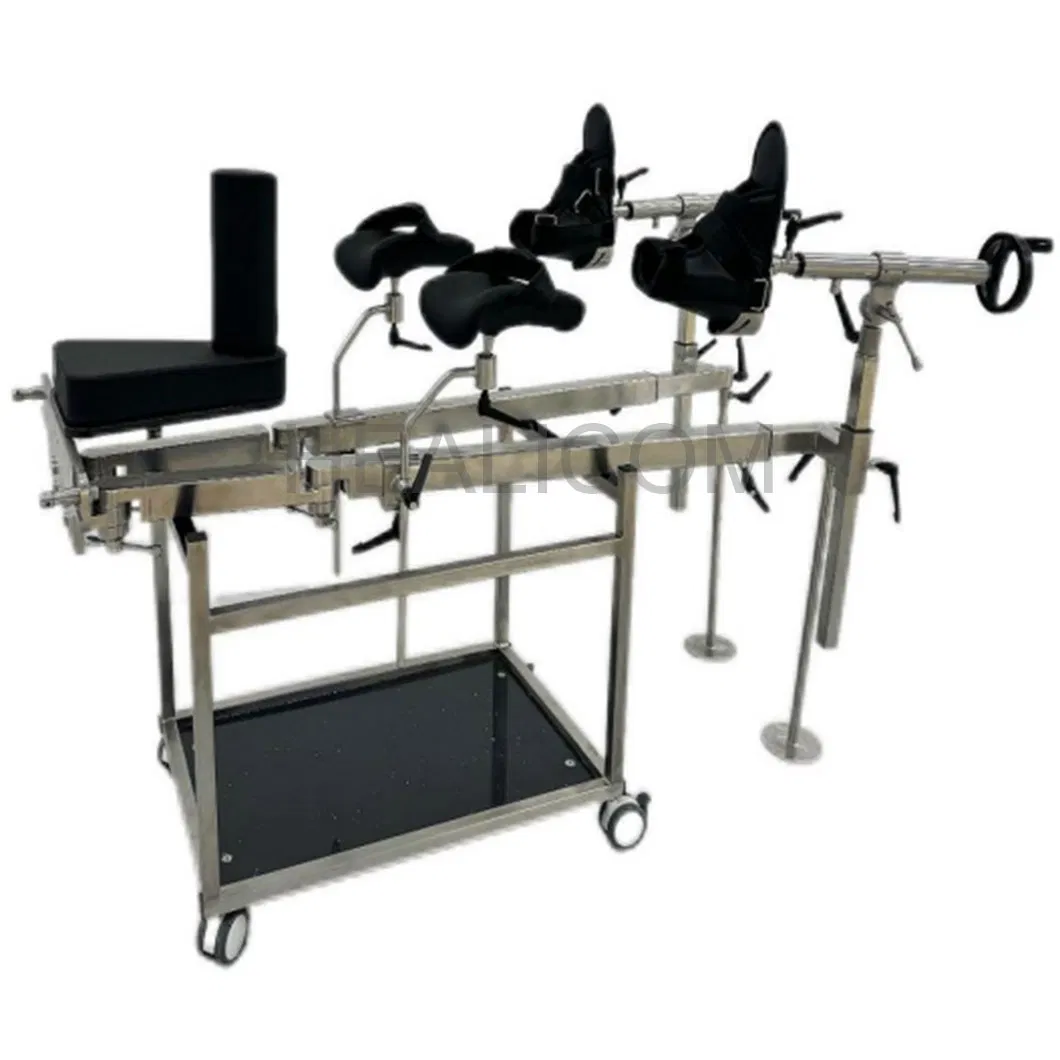

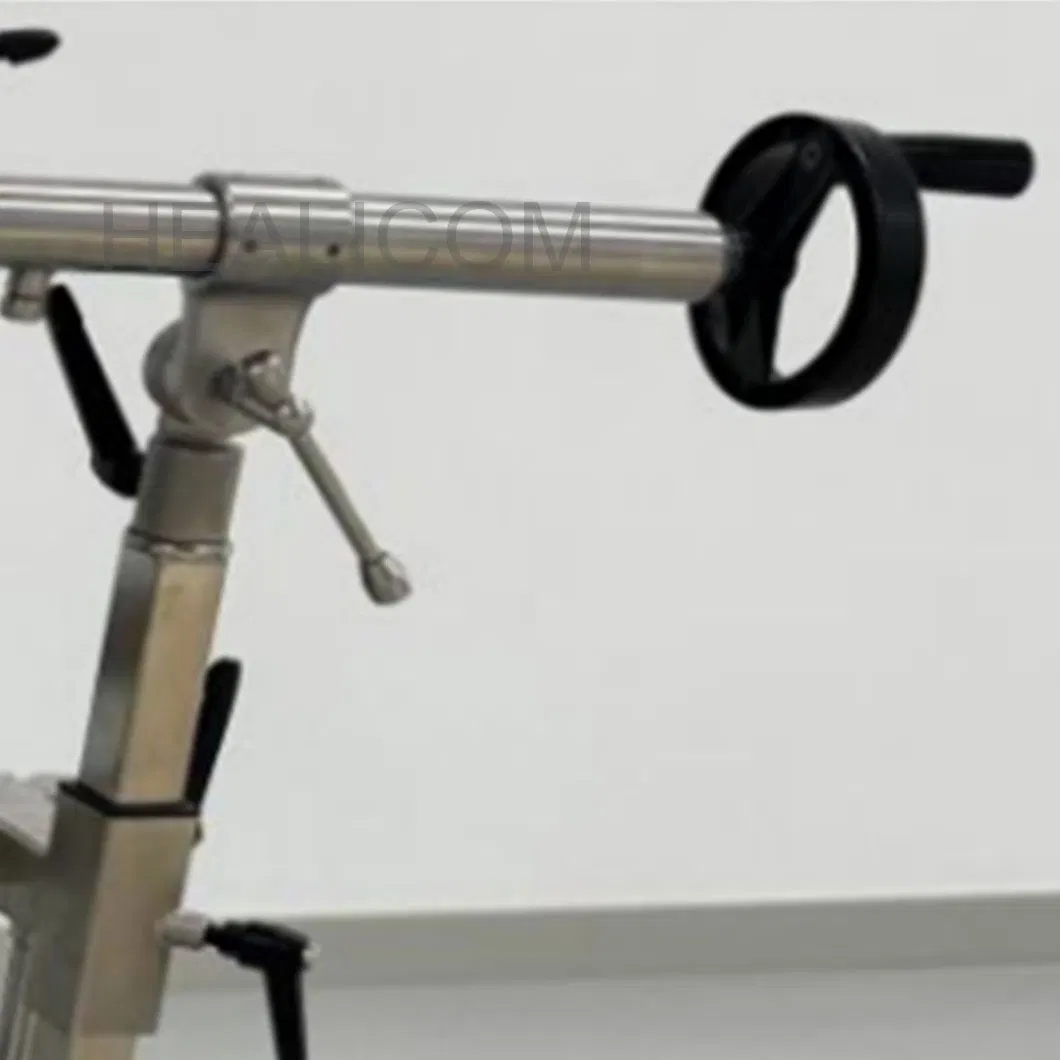

📸 Product Details & Showcase

🌟 Customer Feedback & Facilities

❓ Frequently Asked Questions

1. What about the price level?

We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this field more than 20 years. We always adhere to the principle of providing top quality products with competitive prices.

2. Why are some prices higher than other suppliers for similar looking models?

As the market evolves, copy products with cheap materials and less quality control often appear at lower prices. We focus on maintaining high standards of material quality and precision manufacturing to ensure long-term reliability.

3. What is the delivery time?

Since our products are produced according to each specific order, the delivery period is typically 15 days after order confirmation. For small or sample orders, please check with us for ready stock availability.

4. What about quality assurance?

We offer a one-year warranty period beginning from the time of shipment for medical equipment. We provide free spare parts for minor replacements and full replacements for serious quality issues.

5. What are the payment terms?

We accept multiple payment methods including T/T, Credit Card, L/C, Western Union, PayPal, and MoneyGram.

6. Can this frame be used with any operating table?

The HOTF-02 is a multi-purpose orthopedics traction frame designed to be compatible with standard operation tables, synchronized with the table's height adjustments.
