Medical Equipment Orthopedic Traction Frame Price

i

Basic Specifications

Model NO.

HE-F06

Certification

ISO13485, ISO

Material

304 Stainless Steel

Loading Capacity

160kg

C Arm Compatible

Yes

Warranty

1 Year

Application

Hospital Orthopedic Surgery

Traction Range

1150-1650mm

★

Product Description

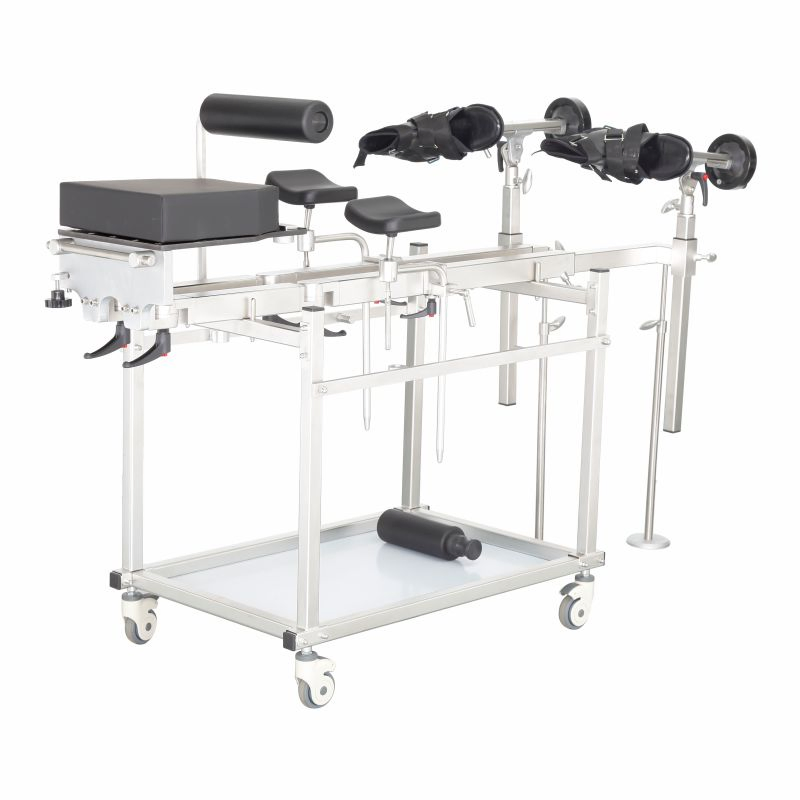

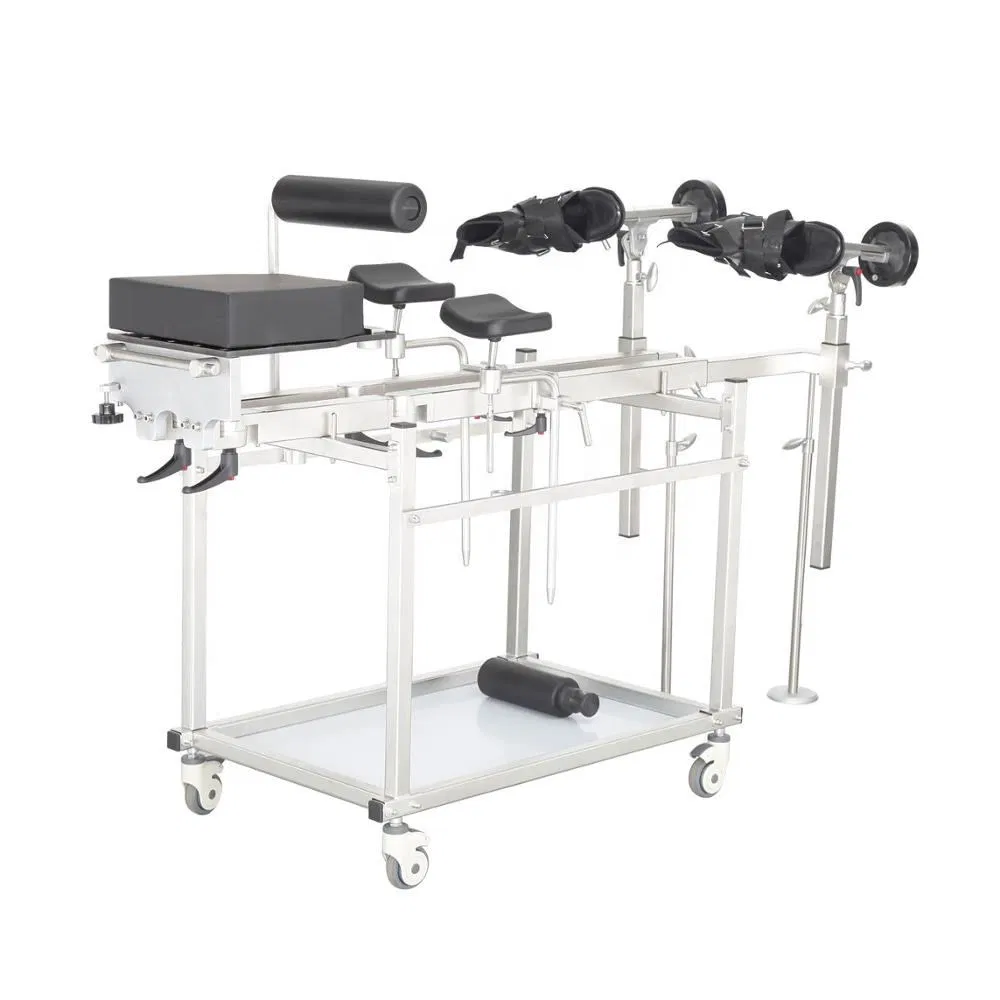

F06 Lower-limb Surgery Orthopedic Traction Table

Advanced Engineering: Our docking-type traction frame is designed for orthopedic and trauma surgery. It features quick installation and full compatibility with C-arm and X-ray machines for unobstructed fluoroscopy. The two-joint design allows for flexible positioning at any angle.

Advantages and Characteristics:

Double joints and retractable traction arm with gyroscopic pelvic frame set.
Pelvic frame features three optional positions (left, center, right) to avoid obstruction during hip fluoroscopy.
30cm adjustable ascending and descending stroke to adapt to patients of all sizes (men, women, children).
Traction rod with 360-degree rotation and telescopic design for flexible application.
Constructed from premium 304 stainless steel, ensuring a smooth and easy-to-clean surface.
Equipped with universal brake wheels for effortless movement and precise positioning.

Main Parameters:

Traction range: 1150-1650mm.
Maximum traction force: 400N.
Telescopic displacement: 500mm.
Traction stroke: 210mm.
Abduction width: 120-770mm.
Traction frame weight: 35KG (Trolley weight: 50Kg).

📷

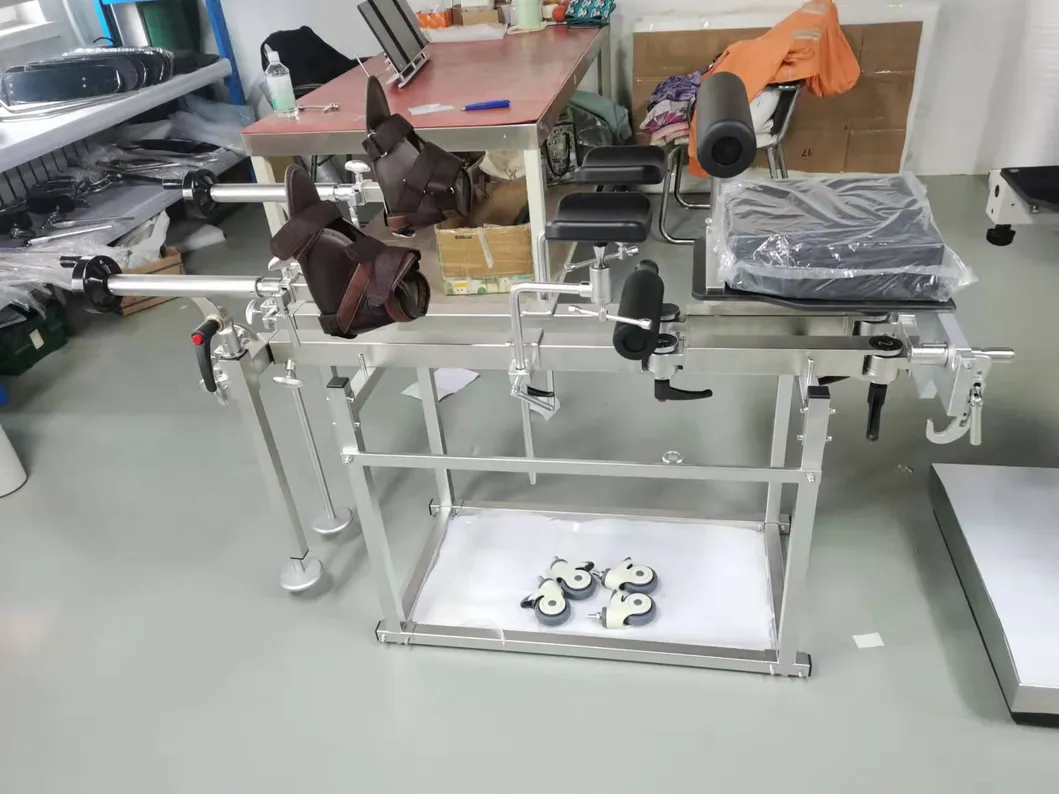

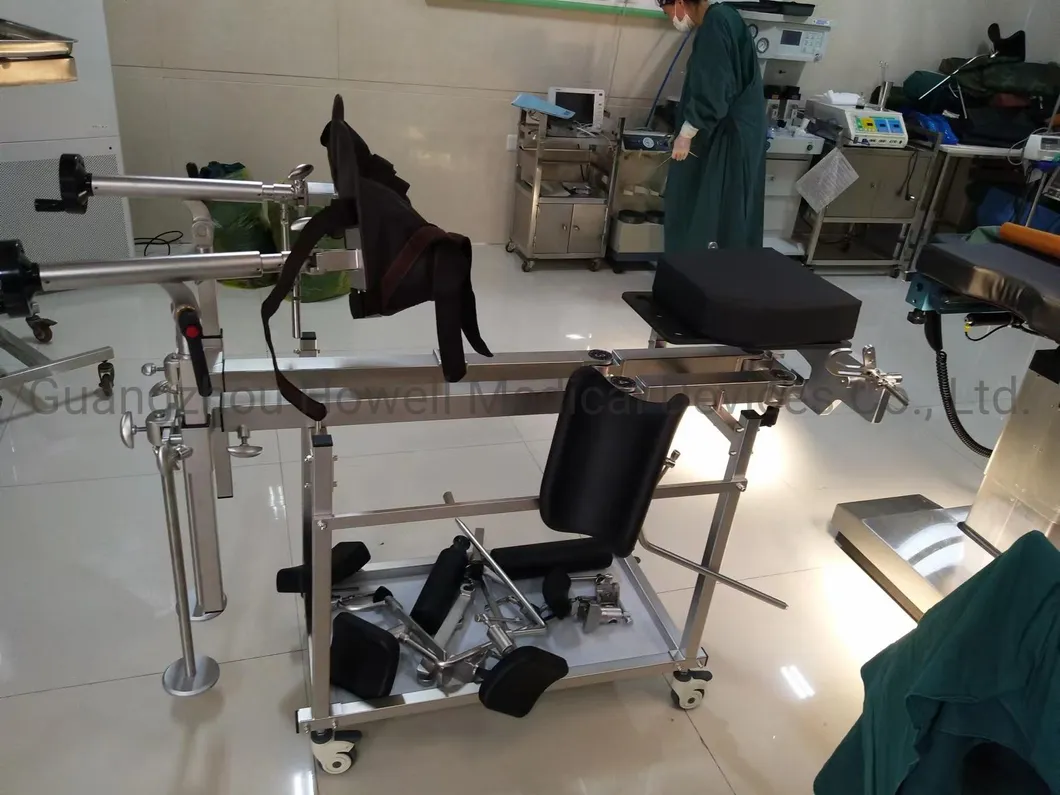

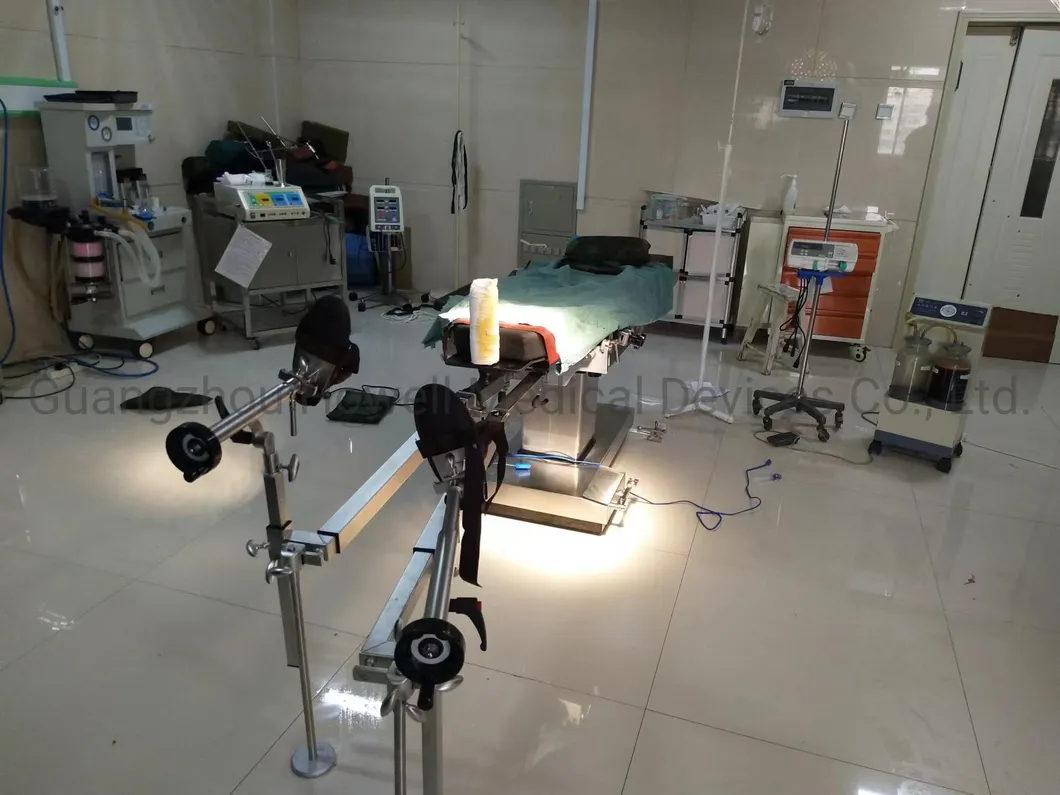

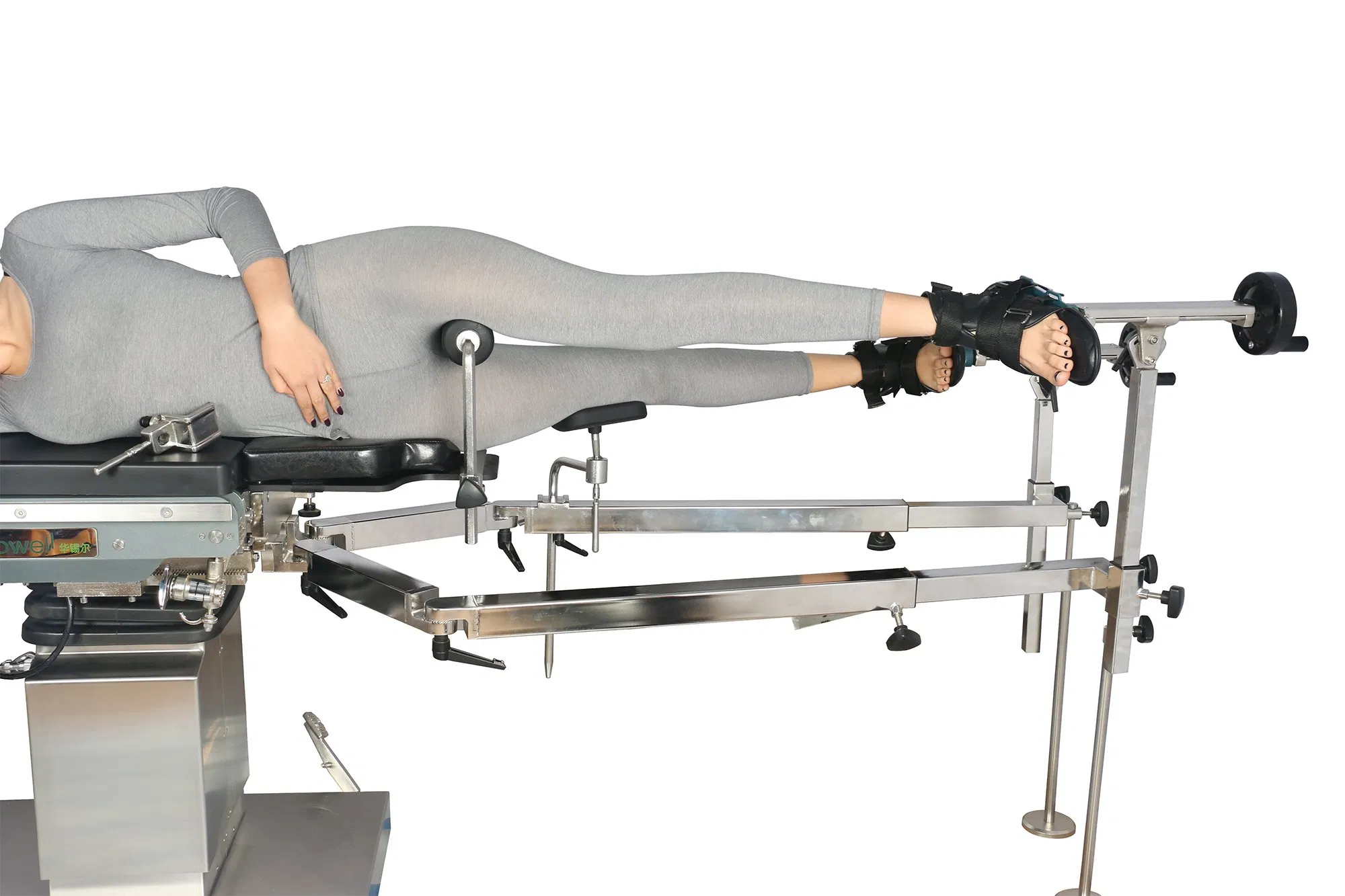

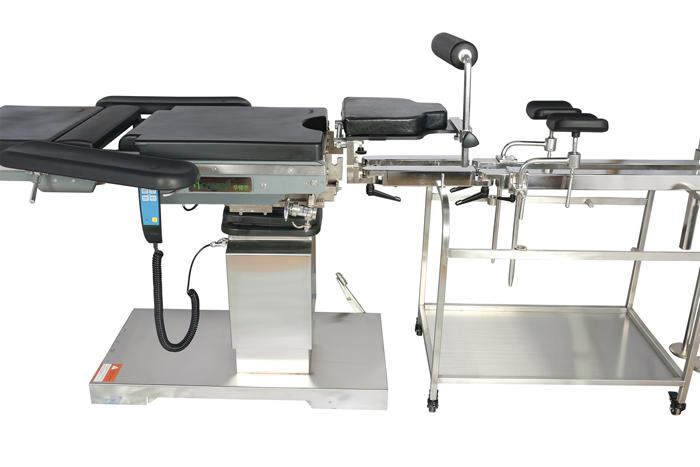

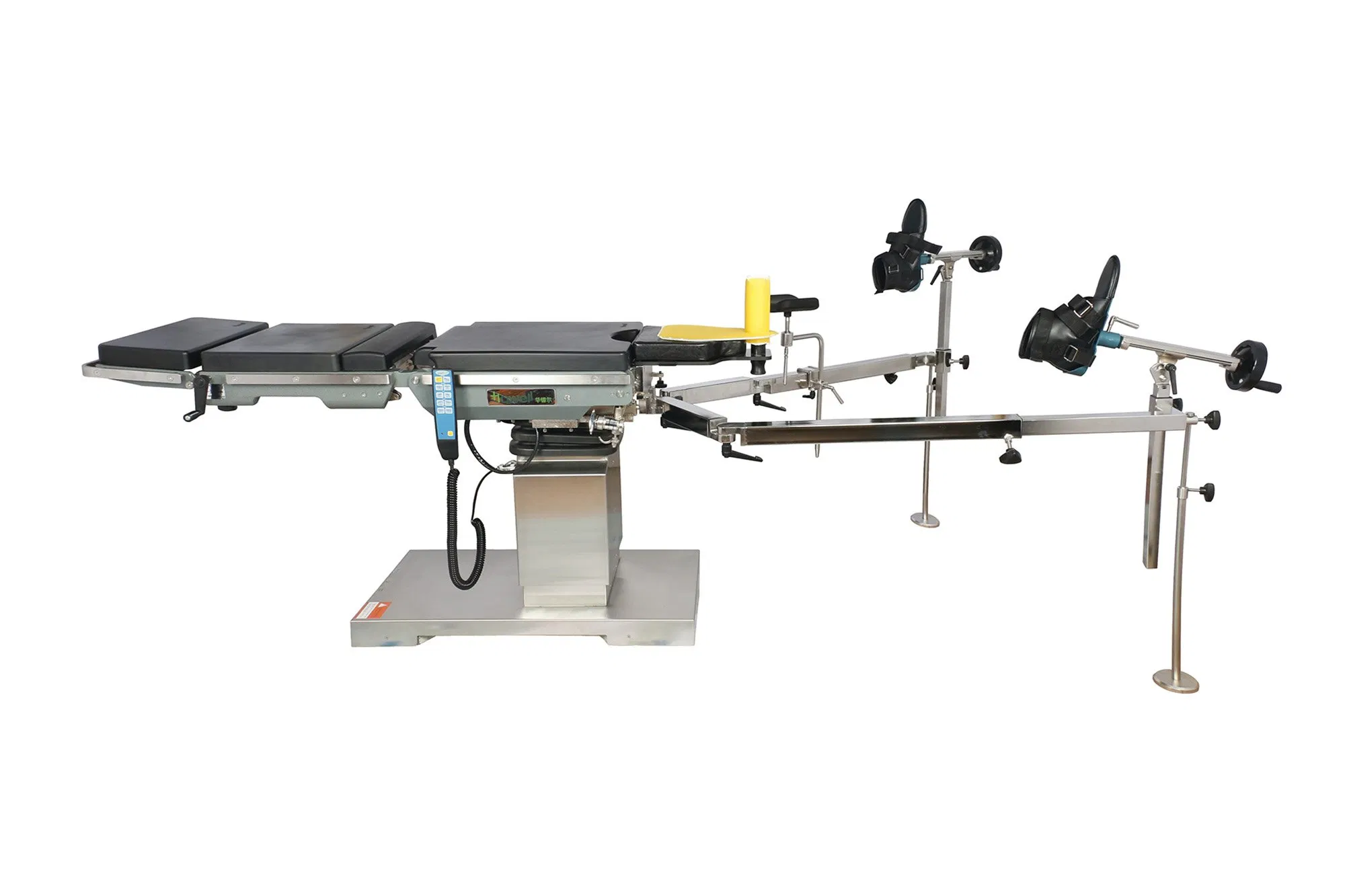

Detailed Photos

📋

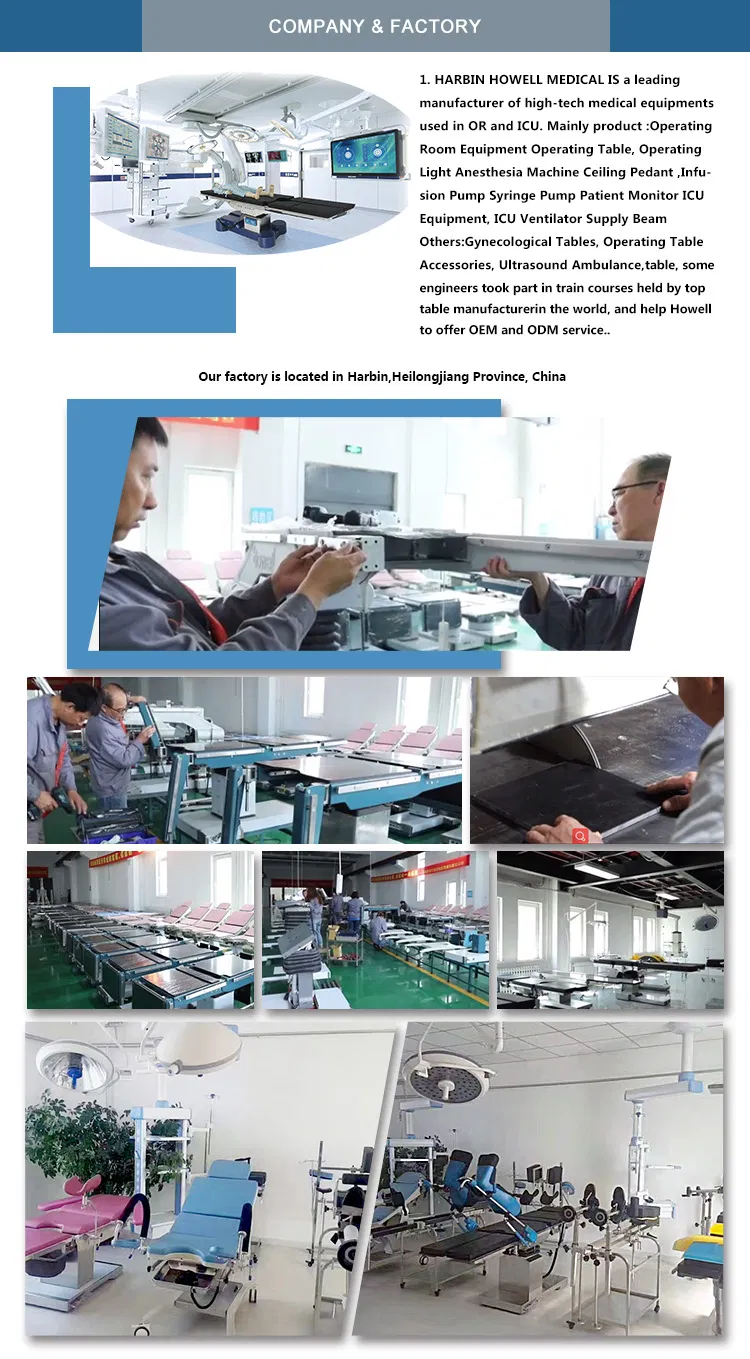

Certifications & Production

📦

Certifications & Packing

?

Frequently Asked Questions

How do you guarantee product quality?

We always provide a pre-production sample before mass production and conduct a final inspection before every shipment to ensure the highest standards.

What types of medical equipment can I purchase?

Our range includes Operating Tables, Shadowless Lamps, Medical Pendants, Accessories for Operating Tables, and Position Gel Pads.

Why should I choose your equipment over other suppliers?

We offer professional R&D, OEM, and ODM services, coupled with quick delivery and 24/7 after-sales support.

What delivery terms do you accept?

We accept various delivery terms including FOB, CFR, CIF, EXW, CIP, DDP, and DDU.

What payment methods are supported?

We support multiple payment types such as T/T, L/C, Credit Card, PayPal, Western Union, and Cash in various currencies including USD, EUR, and CNY.

What languages does your service team speak?

Our team is proficient in multiple languages including English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, and Italian.
