Professional Medical Devices Orthopedic Traction Frame

ℹ️

Basic Information

Model NO.

F06

Certification

ISO13485, ISO

Application

Hospital

C Arm Compatible

Yes

Material

Stainless Steel

Loading Capacity

150kg

Warranty

1 Year

Origin

China

📋

Product Description

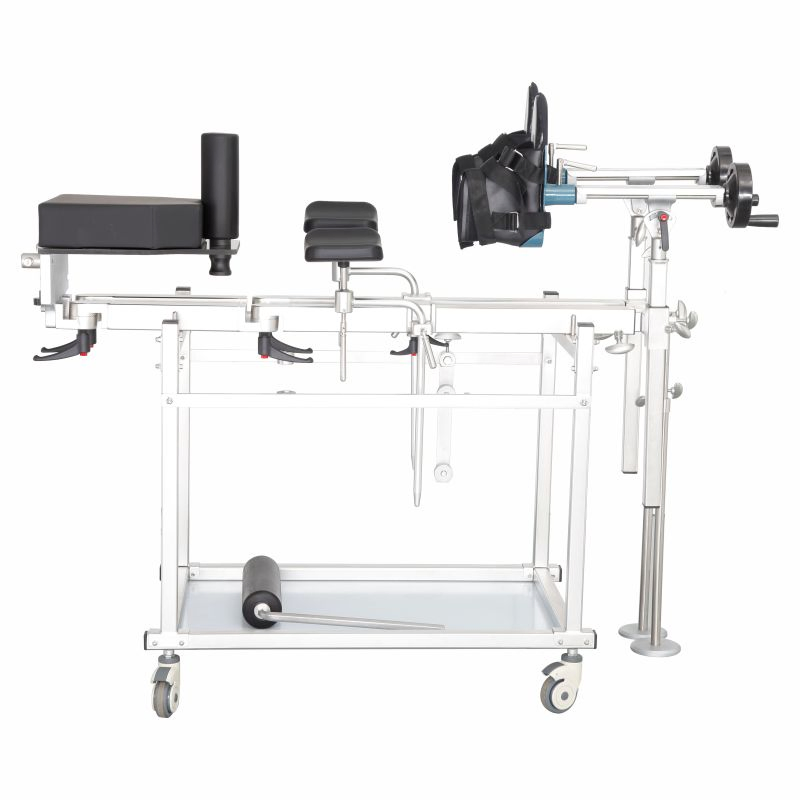

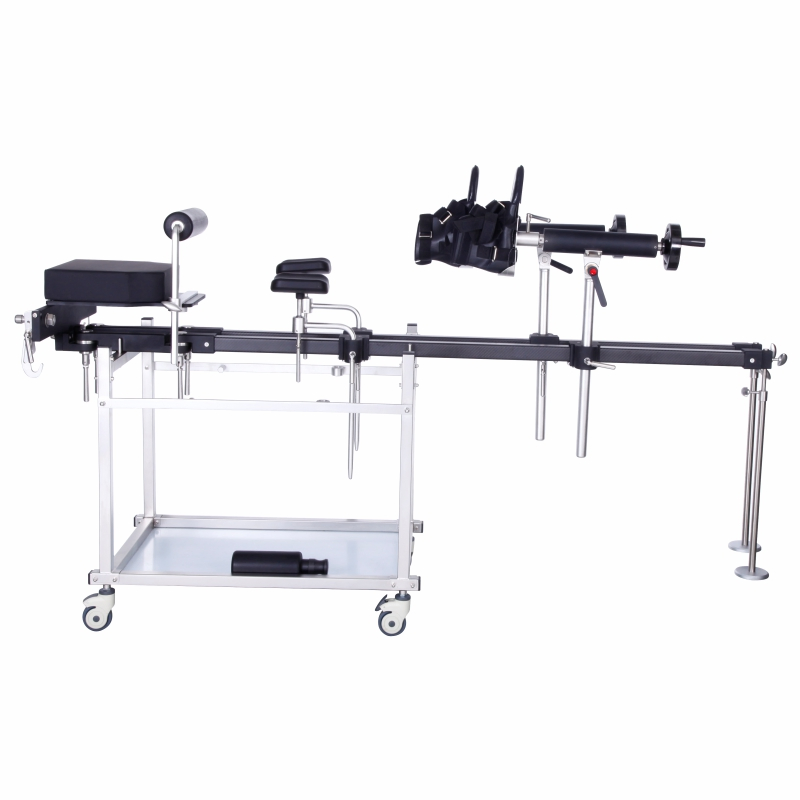

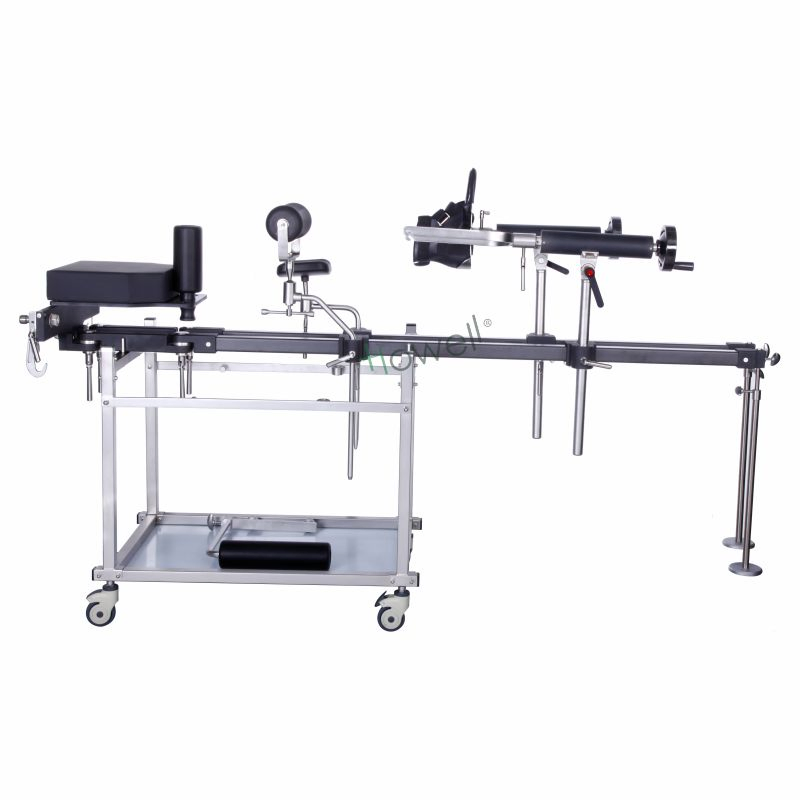

Professional Medical Devices Orthopedic Traction Frame

Stainless Steel Docking-type Traction Frame

Our F-06 type traction frame is designed for orthopedic and trauma surgery with a quick installation function. It can be combined with C-arm and X-ray machines to achieve unobstructed fluoroscopy. The two-joint design allows it to unfold outward and fold inward at any appropriate angle to meet specific surgical position requirements.

1. Advantages and Characteristics

Double joints with retractable traction arm and gyroscopic pelvic frame set.
Pelvic frame features three optional insertion positions (left, center, right) to avoid obstruction during hip fluoroscopy.
Adjustable column with 30 cm ascending and descending stroke for various patient sizes.
360-degree rotation of the ankle fixer and telescopic traction rod design.
Universal brake wheels for easy movement and secure positioning.
Constructed from high-quality 304 stainless steel, ensuring a smooth, easy-to-clean surface.
Ideal for trauma surgery, hip joint X-ray imaging, femoral plate surgery, and total hip replacement.

2. Main Parameters

Traction Range	1150-1650mm
Maximum Load Capacity	160kg
Maximum Traction Force	400N
Telescopic Displacement	500mm
Traction Stroke	210mm
Abduction Width	120-770mm
Traction Frame Weight	35KG
Total Weight with Trolley	50Kg

📸

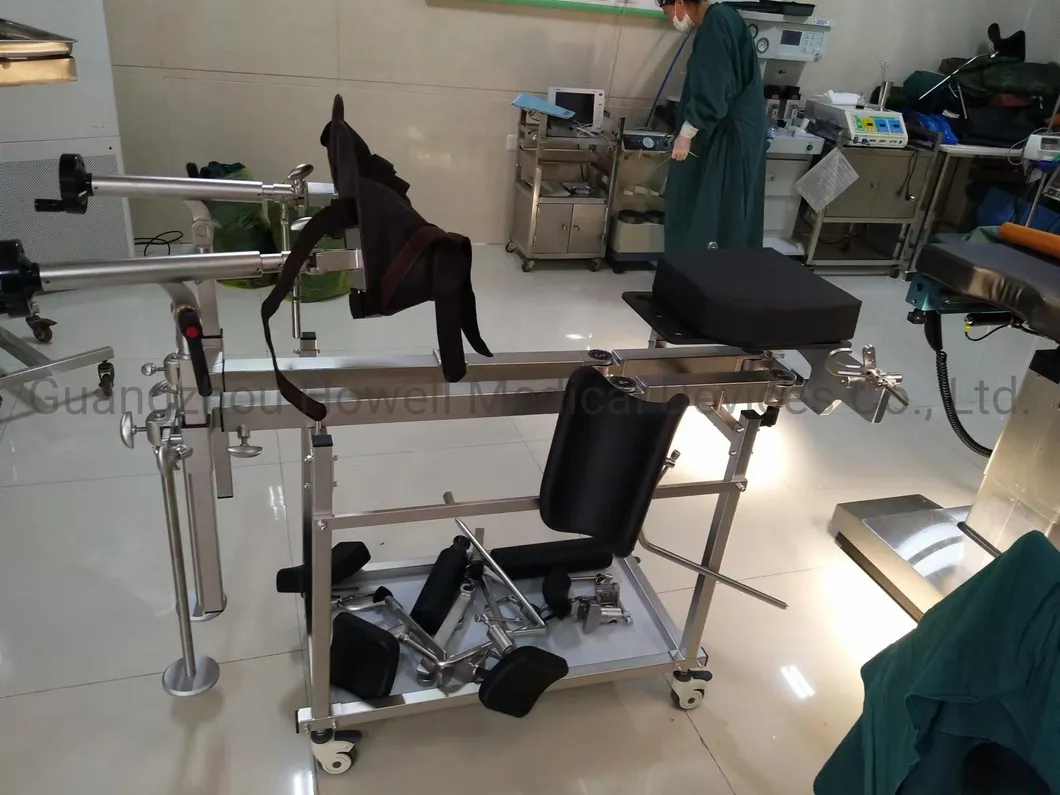

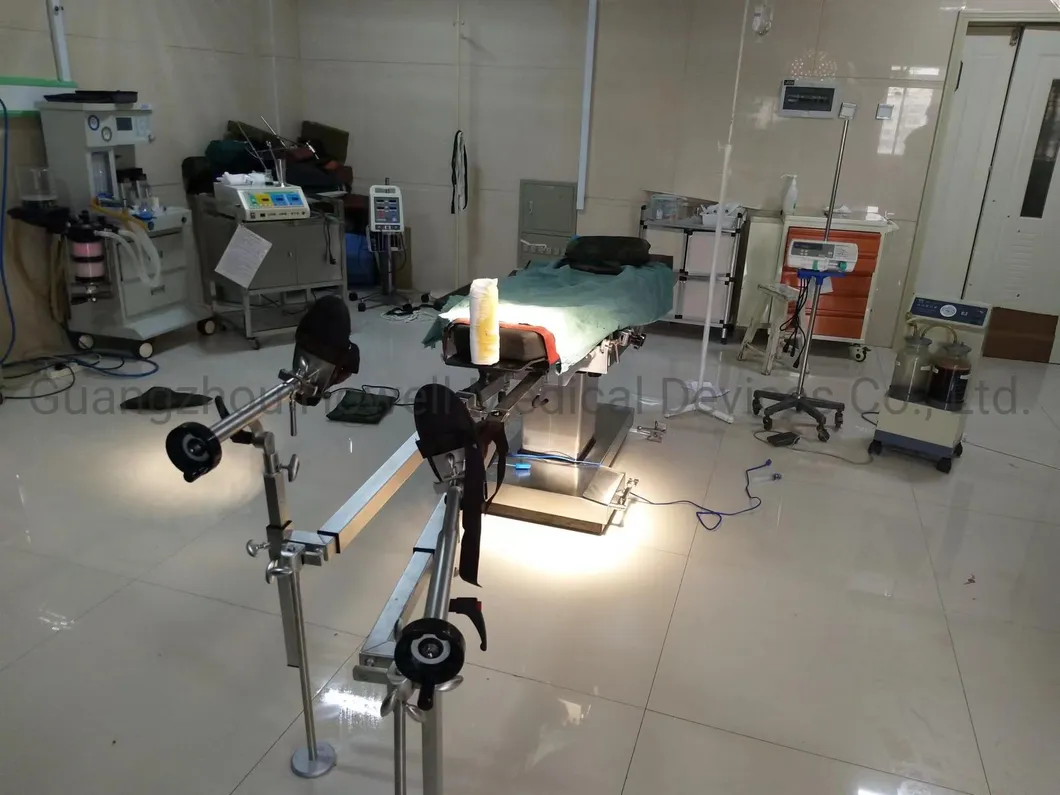

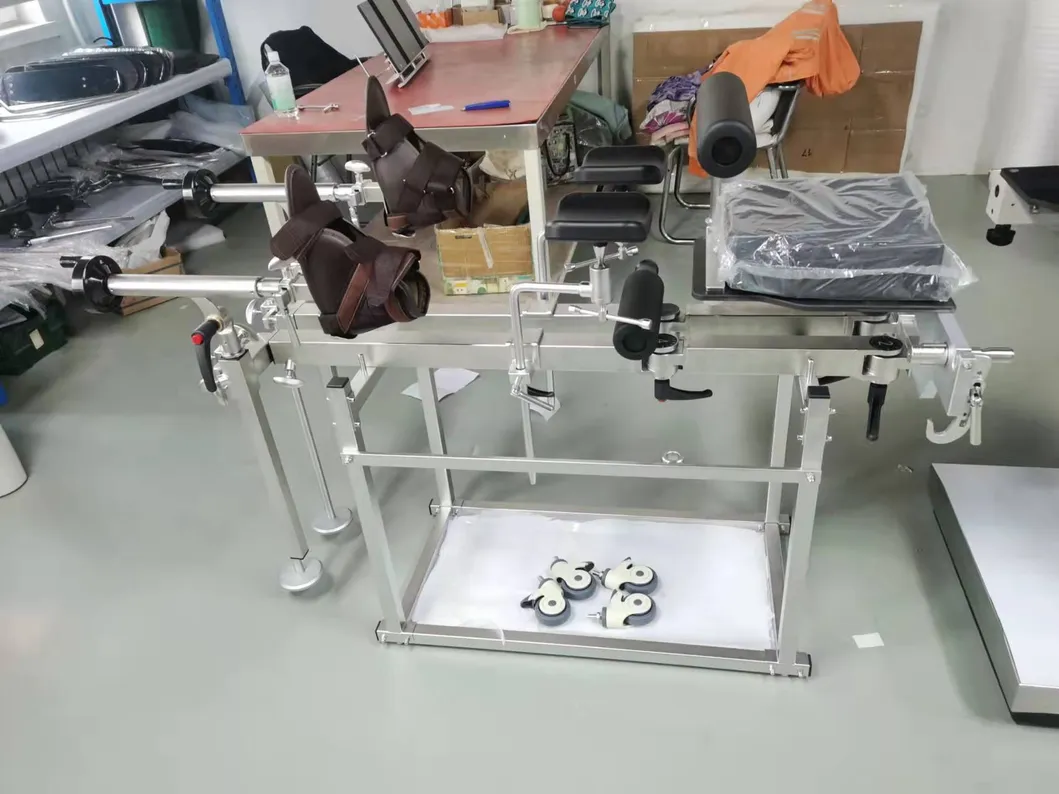

Detailed Photos

🏢

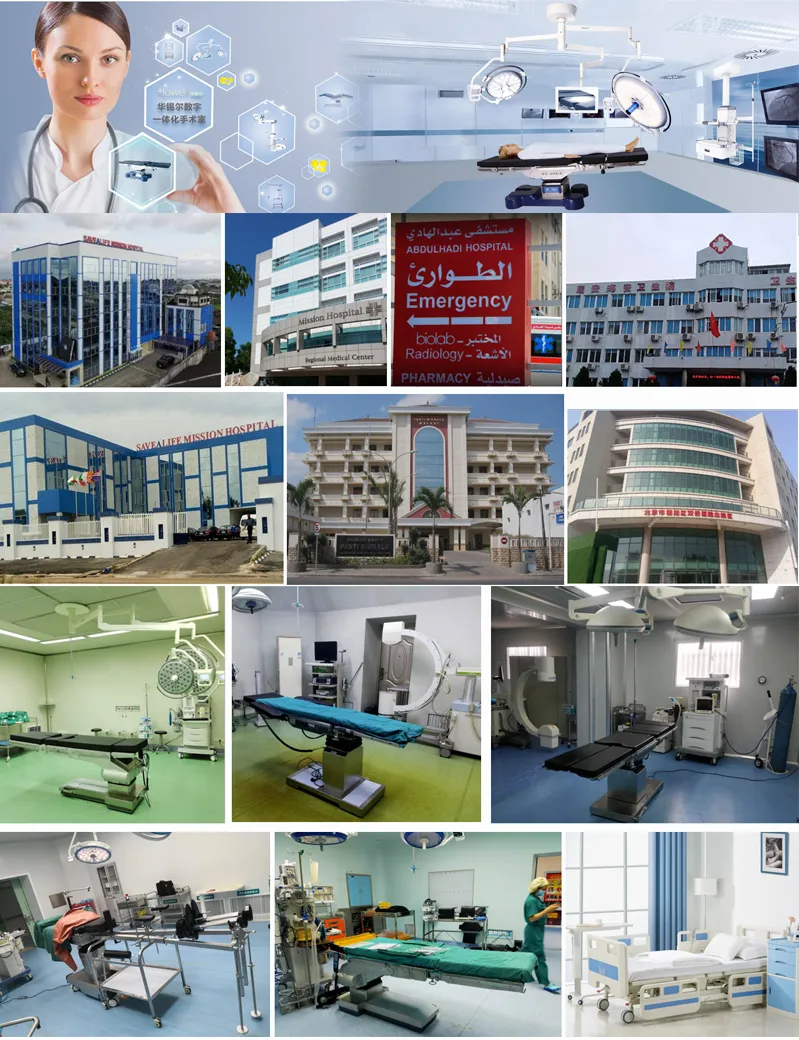

Production & Quality

📜

Certifications & Packing

Standard Shipping Packing

❓

Frequently Asked Questions

1. What is the primary material of the traction frame?

The traction frame is constructed from high-quality 304 stainless steel, which provides a smooth, durable, and easy-to-clean surface suitable for surgical environments.

2. How is the product quality guaranteed?

We maintain strict quality control through a pre-production sample before mass production and a final inspection process before every shipment.

3. What other medical equipment do you provide?

Our product range includes Operating Tables, Shadowless Lamps, Medical Pendants, Operating Table Accessories, and Position Gel Pads.

4. Can this frame be used with imaging equipment?

Yes, the docking-type traction frame is specifically designed to be compatible with C-arm and X-ray machines to ensure unobstructed fluoroscopy during surgery.

5. What are the accepted delivery and payment terms?

We accept various delivery terms including FOB, CFR, CIF, EXW, and DDP. Accepted payment methods include T/T, L/C, Credit Card, and PayPal in multiple currencies such as USD, EUR, and CNY.

6. Is the traction frame adjustable for different patient sizes?

Yes, it features a retractable traction arm and a pelvic frame on a lifting column with a 30 cm stroke, making it adaptable for men, women, and children of different sizes.
